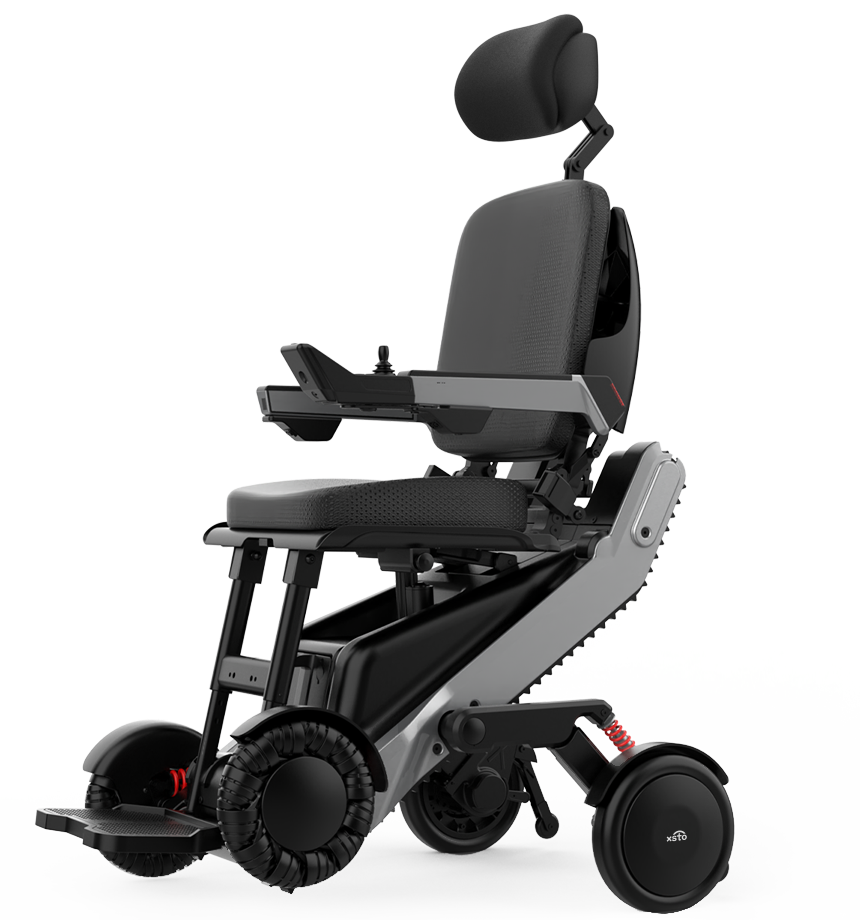

Embodied mobile-assisted all-terrain adaptive robot electric four-wheeler and tracked vehicle two in one X13

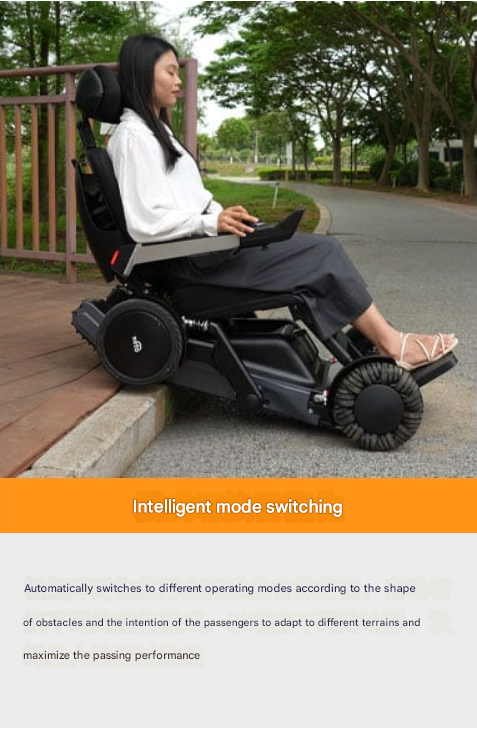

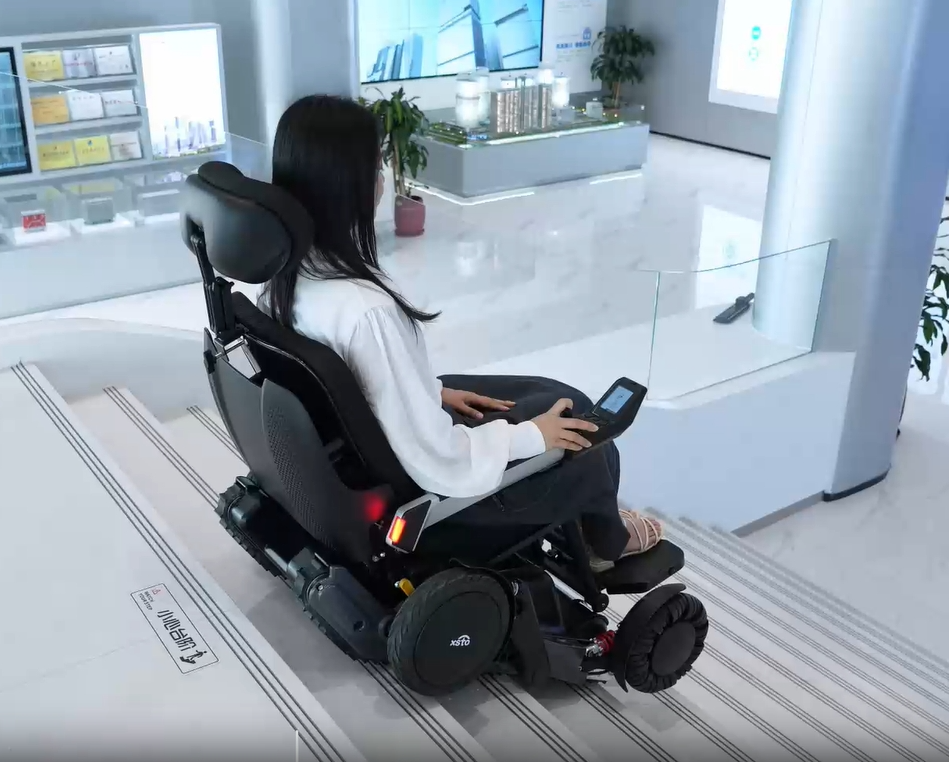

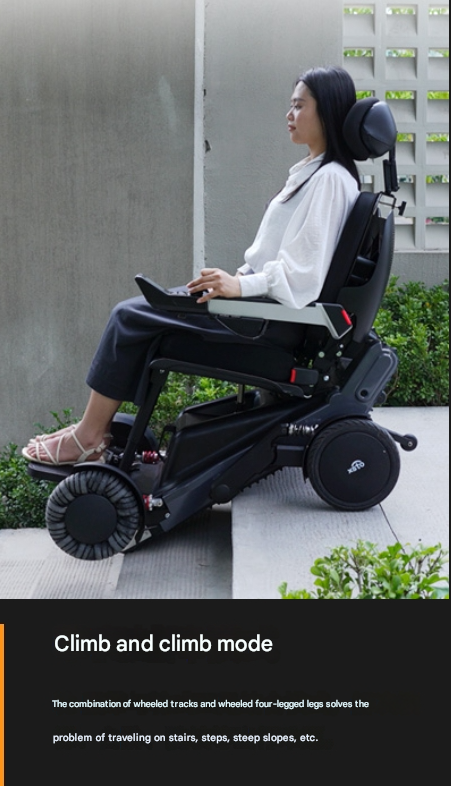

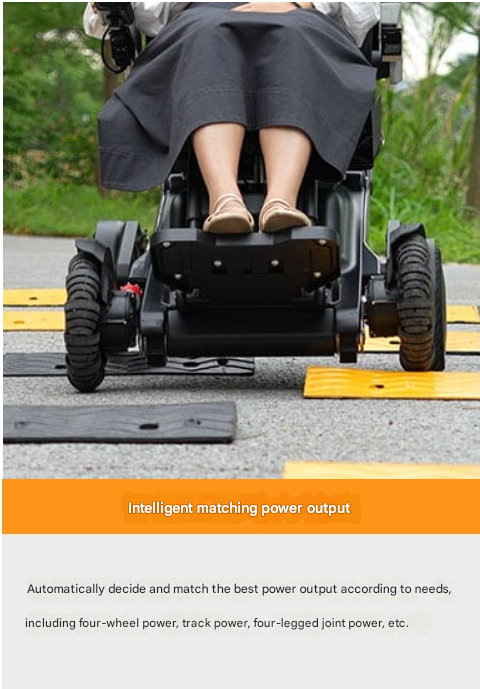

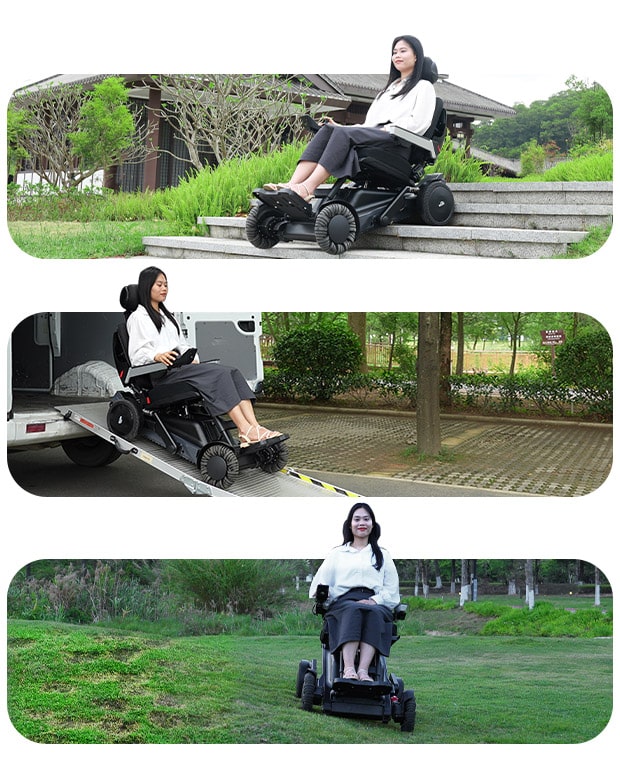

The wheeled quadruped robot chassis and dual-track crawling system can flexibly handle diverse and complex road conditions. 14 power systems provide excellent and stable obstacle-crossing performance, making it easy to navigate stairs, steep slopes, and potholes.

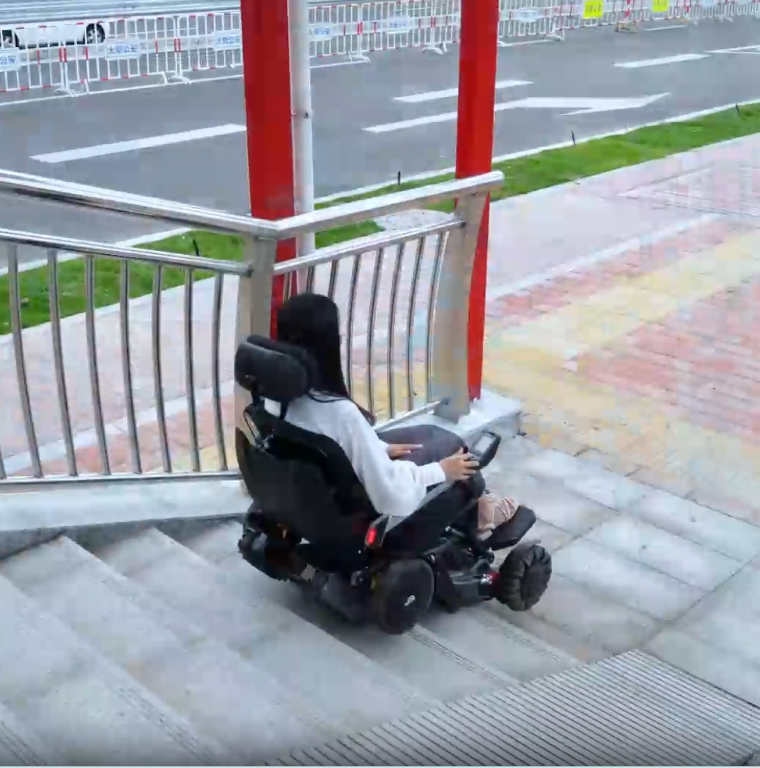

By detecting obstacles through laser radar, gyroscopes and other sensors, constructing spatial topography and determining spatial position, and then using unique large models and algorithms to control the robot’s deformation and movement, it can achieve fully automated control of obstacle crossing processes such as going up and down stairs, crossing slopes, and roadsides, truly realizing intelligence, comfort and safety.

All-Terrain 360° Self-Balancing Dynamic Seat
The industry’s first “Chengchong” technology system uses a gyroscope and a unique spatial safety threshold algorithm to automatically compensate for seat posture in complex terrains. It maintains dynamic balance on slopes, steps, and uneven surfaces, ensuring the seat remains in constant balance.

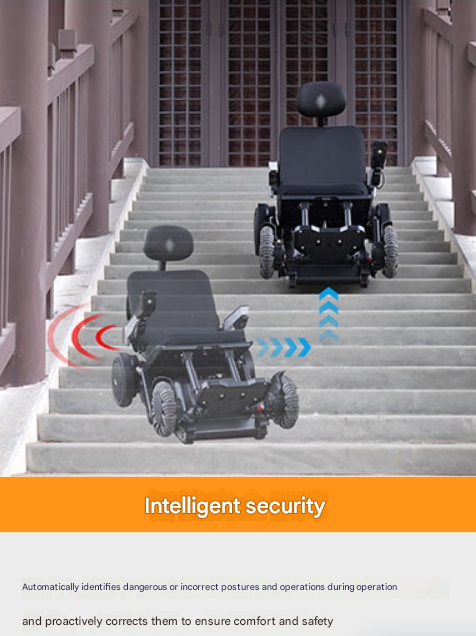

Intelligent Assisted Driving
Obstacle Avoidance Warning

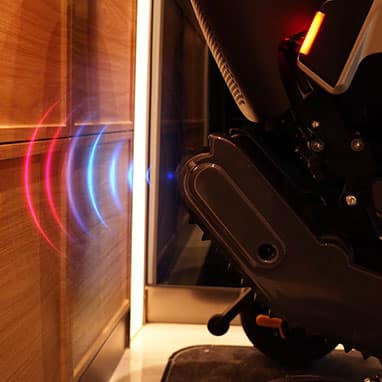

Reversing Collision Warning
Fall Prevention
Meeting automotive-grade safety standards, LiDAR accurately detects the environment, proactively alerts users to dangerous areas, and issues voice warnings of potential falls or rollovers.

Specifications
Weight: Approximately 120 kg
Speed: 6-12 km/h
Stair Climbing: 200-250 steps
Range on Level Ground: 35 km
Maximum Load: 136 kg
Chassis Type: Wheeled, four-legged tracked chassis
Stair Climbing: 25 steps/minute
Descending Speed: 30 steps/minute
Number of Chassis Powertrains: 11
Pitch Range: Forward: 8°, Backward: 43°

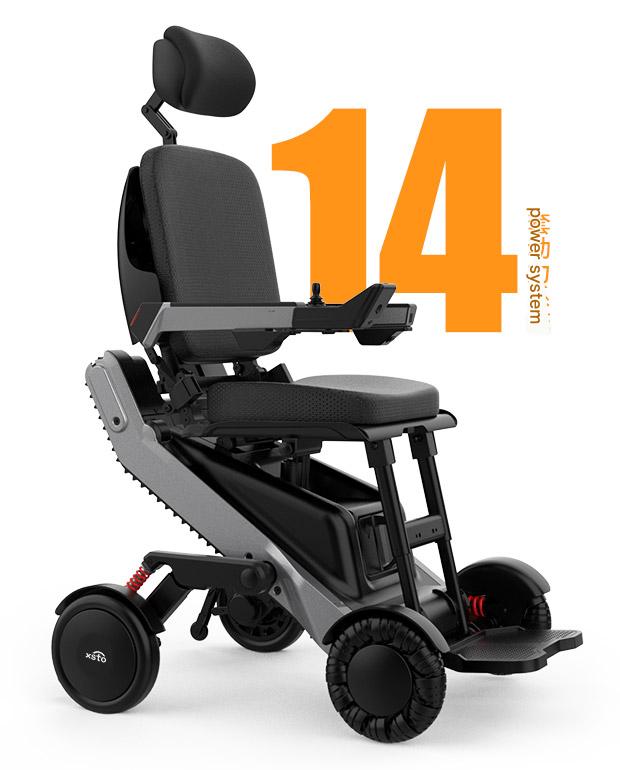

Number of Powertrains: 14
Battery Capacity: 24V 51.2Ah
Assisted Driving Safety Tips
Standard
Front Wheels
10-inch Mecanum Wheels
Reversing Sensor
Standard
Rear Wheels
10-inch Solid Wheels

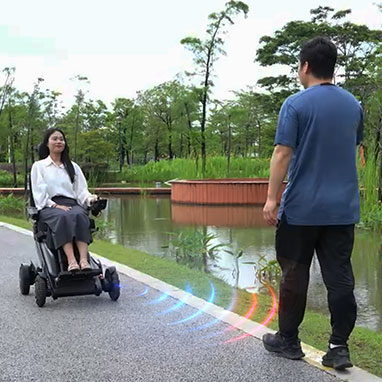

Auto Follow
Optional
Ingress Protection
IPX4
Seat Depth Adjustment
350-400mm
Seat Width Adjustment
410-460mm
Backrest Width
371/401/431mm
Armrest Height Adjustment
175-250mm
Backrest Height
Approximately 520-595mm
Backrest Recline Angle
90-135°
Adaptive Step Size
Height <210mm Tilt <40°
Sensor Type: LiDAR + Gyroscope
Stair/Landing Dimensions and Angles
Minimum Stair Width: 800mm
L-Shaped Turn: 1200x1200mm
U-Shaped Turn: 1200 (Depth) x 2000 (Width)mm

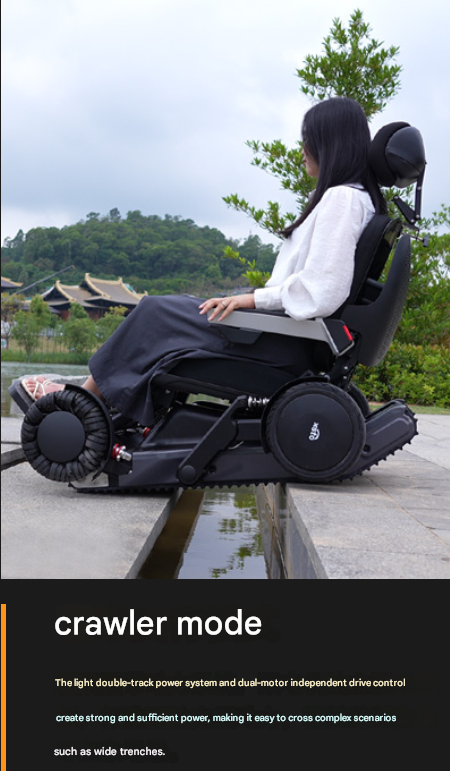

Motion Modes: 1. Tracked Crawl Mode
2. Climbing and Obstacle Traversing Mode

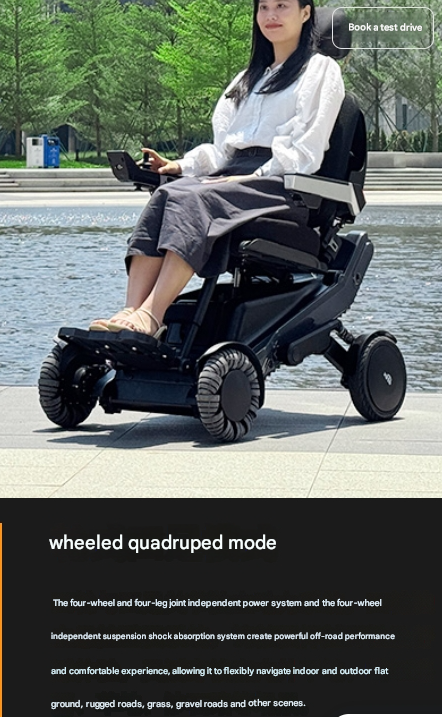

3. Wheeled Quadruped Mode
Lock/Unlock Mode: Wireless Key
Entertainment Functions: Rocking Mode, AI Interaction Mode
Lift Range: Highest Seat Clearance: 750mm
Lowest Seat Clearance: 189mm

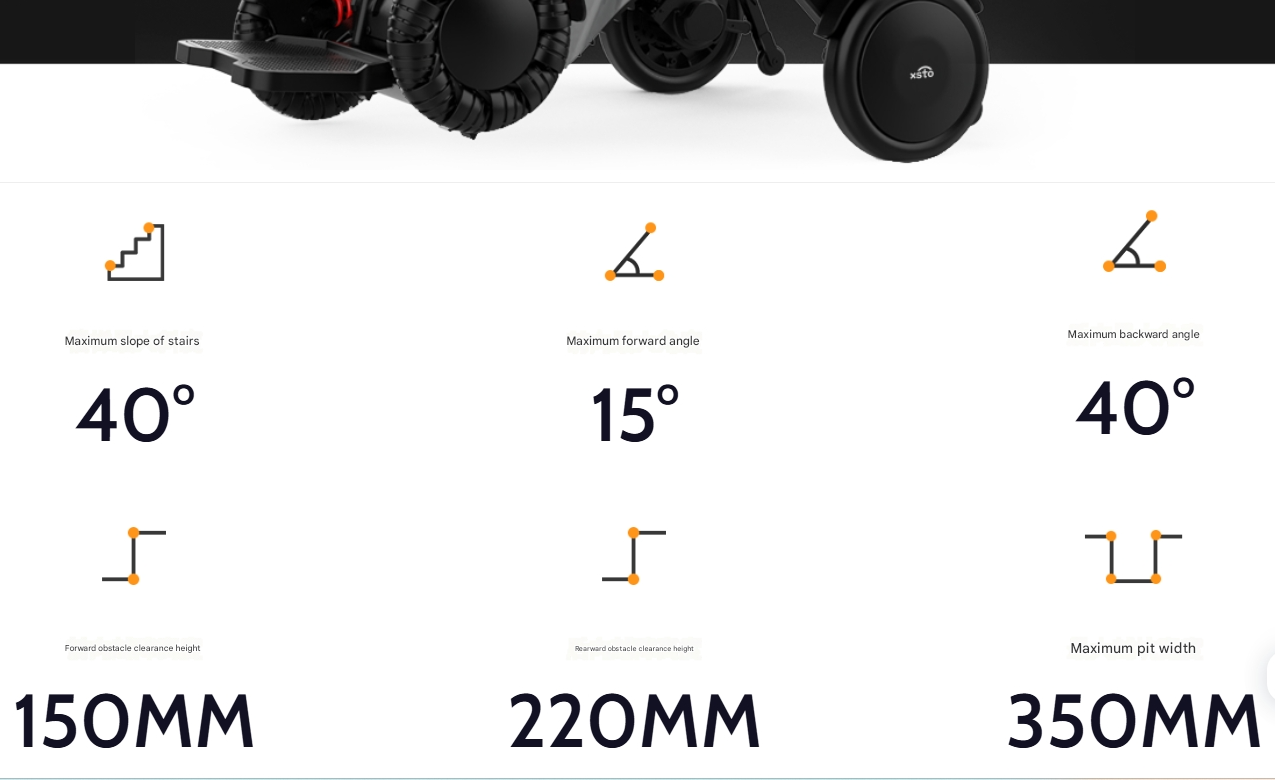

Obstacle Traversing Height
Rear Obstacle Climbing: 210mm
Forward Obstacle Climbing: 120mm
Minimum Turning Radius
Wheeled Quadruped: 821mm
Track Mode: 590mm
Gradeability
Rear Gradability: 40°
Forward and Rear Gradability: 15°

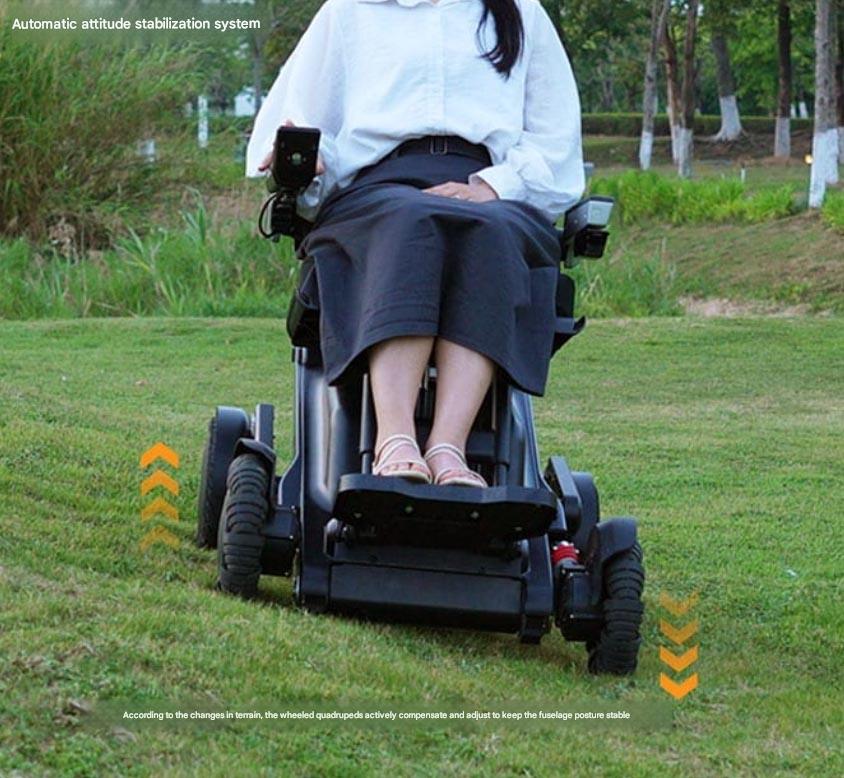

Balance Type: 360-degree full-time automatic balancing
(Ground Tilt Range: 15° front to rear, 5° left to right, 8-15° in other directions)
Ditch Climbing Width
Track Mode: <300mm
Wheeled Quadruped Mode: <180mm
*The above product features and specifications are subject to the final product specifications.
